AC220V 50Hz 100W Customized Textile Testing Instruments with 53kg

Name: AC220V 50Hz 100W Customized Textile Testing Instruments with 53kg
Brand: Kejian Kinsgeo
Price: 1 USD

Wholesale AC220V 50Hz 100W Customized Textile Testing Instruments with 53kg from china suppliers

Brand Name : Kejian Kinsgeo

Model Number : KJ-C086

Certification : ISO,CE and etc

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiate

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 100 Sets per Month

Delivery Time : in stock,5-10 working days after order confirmed

Packaging Details : Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case

Aplication : Textile

Warranty : 12 Months

Usage Strength : Testing Machine

others : can be customized

Display control : 10.4-inch touch screen

Operation : Manual+Automatic

Power : AC220V 50Hz 100W

Weight : 53kg

Contact Now

AC220V 50Hz 100W Customized Textile Testing Instruments with 53kg

Applicable Range

Used for testing the accurate length of yarns, the linear density or the count of textile yarns and the strength of skeins.

Relevant Standards

GB/T4743 GB/T14343 GB/T6838 ISO2060 ASTM D1907 etc.

Instrument characteristics

1. Timing cog belt of direct transmission, No-lap skid
2. Countint by Optocoupler
3. Import electronic tension sensors, dynamic display the around yarn tension, no additional tension impact

Specifications:

Model	KJ-C086
Testing spindle numbers	6 magentas
Spindles space	60mm
Winch circumference	1000±1mm
Winch speed	20～250rpm(Stepless speed regulation)
Palygorskite yarn laps	1～9999
Shake yarn peciprocating distance of horizontal travel	35±0.5mm
Single yarn tension range	0～100±1cN
Power source	AC220V 50Hz 100W
External dimension	780×660×480mm
Weight	53kg

RFQ:

Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2. Excellent after sale service:

1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.

3. Good Packaging:

Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

Pictures:

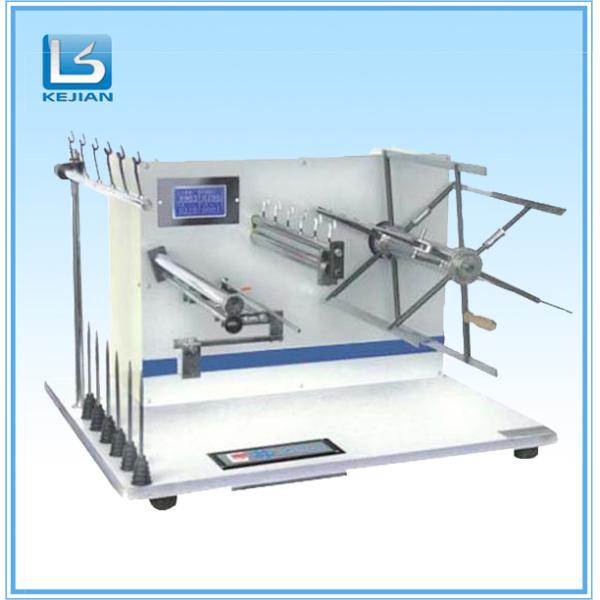

AC220V 50Hz 100W Customized Textile Testing Instruments with 53kg
